Caractéristiques générales :
| Module Type |
YLxxxD-40d 1/2 (xxx=Pmax)
YLxxxD-40d 1500V 1/2 (xxx=Pmax)
|
|||||
| Power Output | Pmax | W | 435 | 440 | 445 | 450 |
| Power Output Tolerance | Pmax | W | 0/+5 | |||
| Module Efficiency |
ηm
|
% |
20.01
|
20.24
|
20.47
|
20.70
|
| Voltage at Pmax | Vmpp | V | 40.75 | 40.95 | 41.15 | 41.35 |
| Current at Pmax | Impp | A | 10.68 | 10.75 | 10.82 | 10.89 |
| Open Circuit Voltage | Voc | V | 49.30 | 49.50 | 49.70 | 49.90 |
| Short Circuit Current | Isc | A | 11.26 | 11.33 | 11.40 | 11.47 |
|
STC: 1000W/m2 irradiance, 25°C cell temperature, AM1.5g spectrum according to EN 60904-3.
Average relative efficiency reduction of 3.3% at 200W/m2 according to EN 60904-1.
|
||||||
| Power Output | Pmax | W | 322.2 | 326.0 | 329.7 | 333.4 |
| Voltage at Pmax | Vmpp | V | 37.7 | 37.9 | 38.1 | 38.3 |
| Current at Pmax | Impp | A | 8.54 | 8.60 | 8.66 | 8.71 |
| Open Circuit Voltage | Voc | V | 46.0 | 46.2 | 46.3 | 46.5 |
| Short Circuit Current | Isc | A | 9.12 | 9.17 | 9.23 | 9.29 |
| NOCT: open-circuit module operation temperature at 800W/m2 irradiance, 20°C ambient temperature, 1m/s wind speed. | ||||||
- N° de Modèle:YL450D-40d 1/2
- Solar Cells:A Grade , 166mm , 9bb Half-Cut
- Backsheet:A Grade , Kpf Material
- Frame:Robust , Anodized Aluminum Alloy
- Front Glass:3.2mm, Tempered, High Transmission,Low Iron Glass

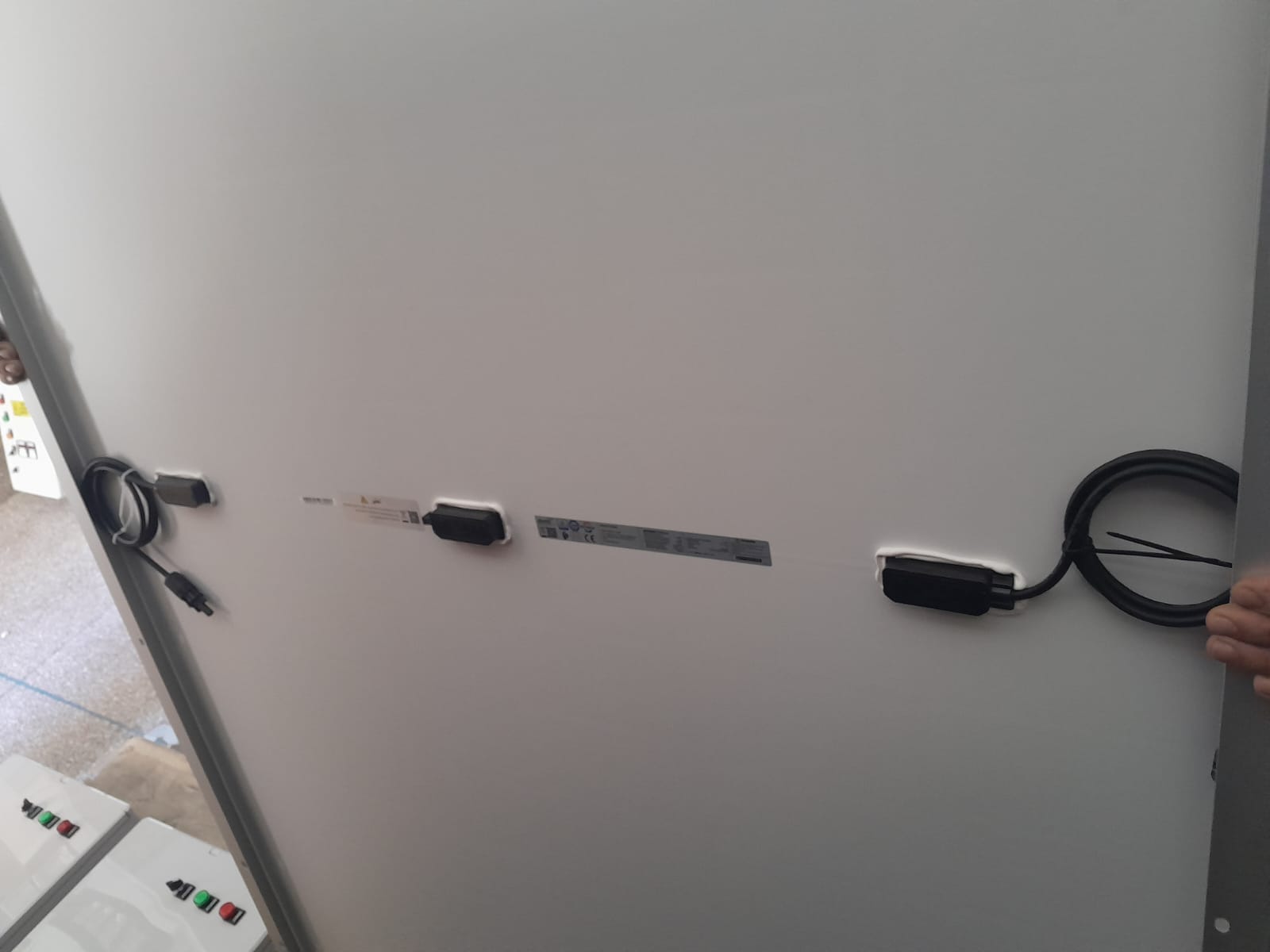

- Connector:Mc4 Connector , Compatible
- Package:30PCS/Plt , 780PC/40hq
- Output Cables:300mm /1400mm, Customized Allowed
- Weight:23.5kgs
- Paquet de Transport:Pallet and Wooden Box
- Spécifications:2094*1038*35mm
- Marque Déposée:PNG Solar
- Origine:China
- Code SH:85414020
- Capacité de Production:800MW Per Year
